Generative Models

This note is under active development. Some additional information can be found in the following scribbles.

Generative Models

# basics
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

# probability
from scipy.stats import norm
from scipy.stats import multivariate_normal

# machine learning
from sklearn.discriminant_analysis import LinearDiscriminantAnalysis
from sklearn.discriminant_analysis import QuadraticDiscriminantAnalysis
from sklearn.naive_bayes import GaussianNB
from sklearn.metrics import accuracy_score

The Normal Distribution

The normal distribution is a continuous probability distribution defined on the real line, \(x \in \mathbb{R}\), with two parameters: \(\mu\) and \(\sigma\).

The probability density function (PDF) of a normal distribution is given by:

\[ f(x \mid \mu,\sigma) = \frac{1}{\sqrt{2\pi\sigma^2}} \exp\left(-\frac{(x - \mu)^2}{2\sigma^2}\right) = \frac{1}{\sigma \sqrt{2\pi}} \exp\left(-\frac{1}{2}\left(\frac{x-\mu}{\sigma}\right)^2\right) \]

Note that \(\mu\) is the mean of the distribution. It determines the location of the distribution, specifically the location of the point of maximum density.

The parameter \(\sigma\) is the standard deviation of the distribution. It determines the scale of the distribution, in this case the spread of the distribution. The larger the value of \(\sigma\), the more spread out the distribution is. A smaller values of \(\sigma\) results in a distribution that is more concentrated around the mean.

When a random variable \(X\) is normally distributed with some mean \(\mu\) and standard deviation \(\sigma\), we write:

\[ X \sim N(\mu, \sigma) \]

Often, the normal distribution is written in terms of the variance \(\sigma^2\) instead of the standard deviation \(\sigma\). Here, we use \(\sigma\) as the parameter of the normal distribution because it mirrors the notation used in the scipy.stats library. The variance is the square of the standard deviation.

When using the variance, we would write:

\[ X \sim N(\mu, \sigma^2) \]

In either case, the resulting PDF and distribution are the same.

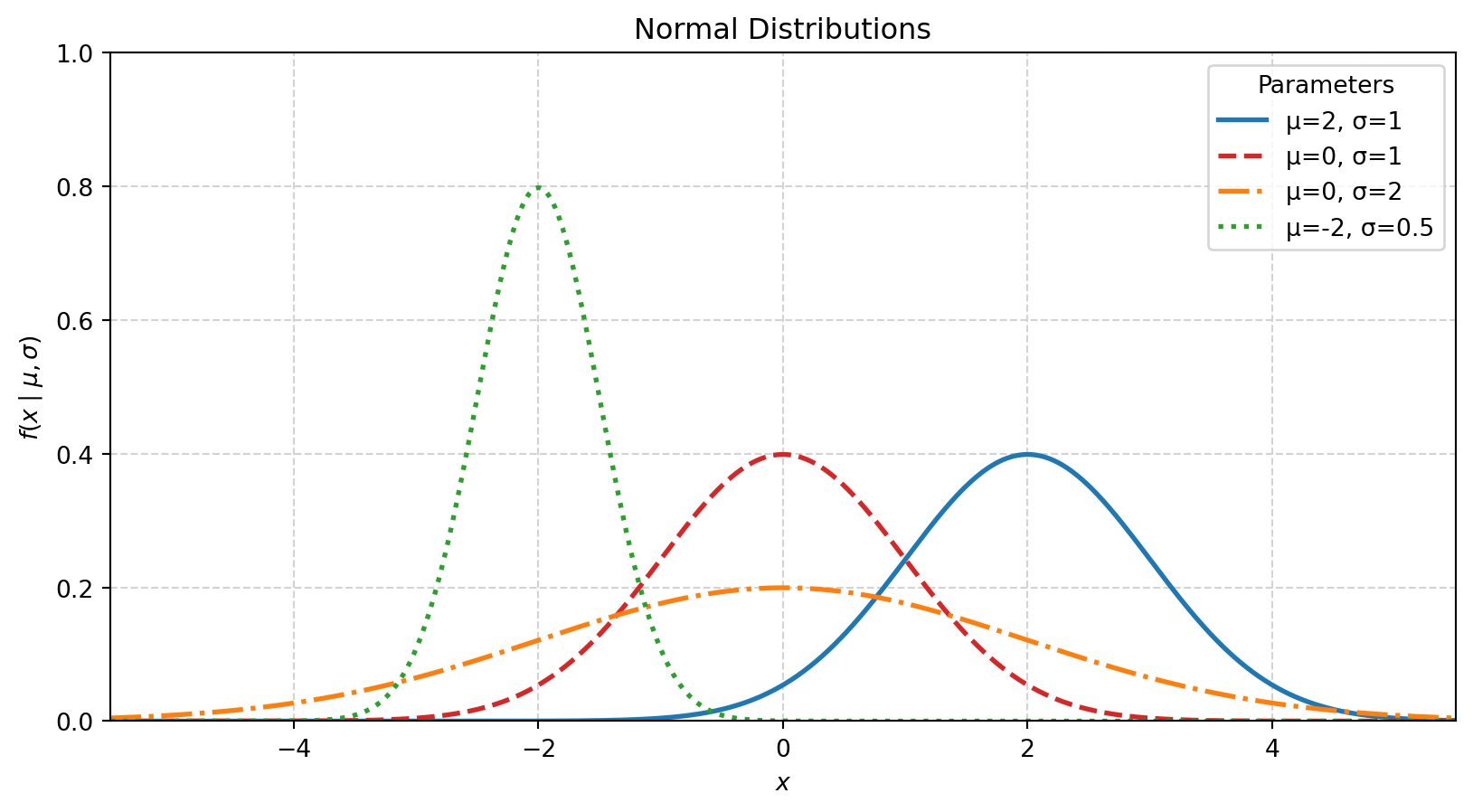

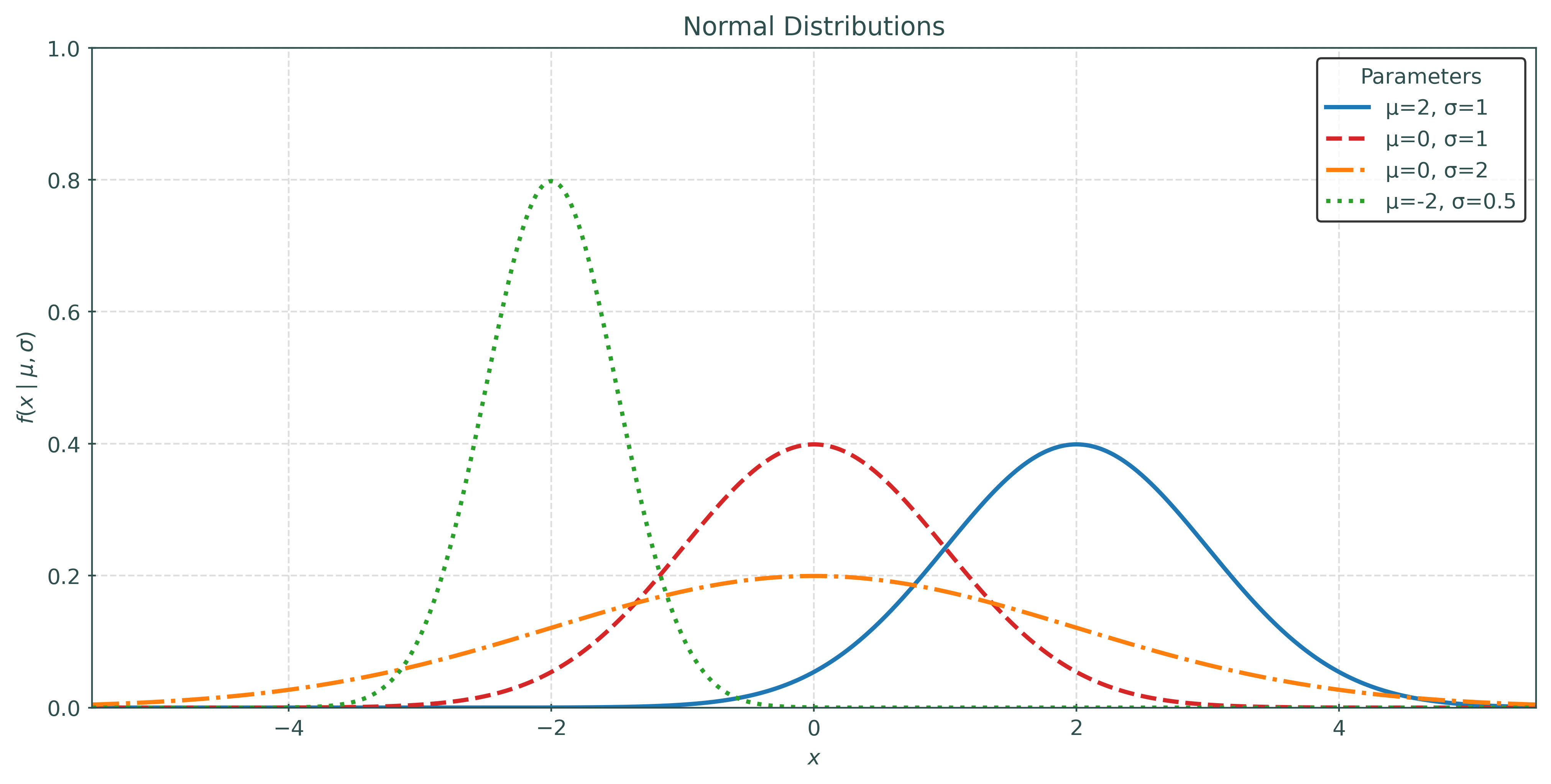

Show Code for Plot

# setup figure
fig, ax = plt.subplots(1, 1)
fig.set_size_inches(10, 5)
x = np.arange(-6, 6, 0.01)
m = [2, 0, 0, -2]
s = [1, 1, 2, 0.5]
c = ["tab:blue", "tab:red", "tab:orange", "tab:green"]
l = ["-", "--", "-.", ":"]

# add normal distributions to plot
for mu, sigma, color, line in zip(m, s, c, l):
    ax.plot(
        x,
        norm.pdf(x, loc=mu, scale=sigma),
        color,
        linewidth=2,
        linestyle=line,
    )

# style plot
ax.set_title("Normal Distributions")
ax.grid(color="lightgrey", linestyle="--")
ax.set_xlabel("$x$")
ax.set_ylabel("$f(x \\mid \\mu, \\sigma)$")
plt.xlim(-5.5, 5.5)
plt.ylim(0, 1)
plt.legend(
    [f"μ={mu}, σ={sigma}" for mu, sigma in zip(m, s)],
    title="Parameters",
    loc="best",
)

# show plot
plt.show()

Estimation

Given data \(x_1, x_2, \ldots, x_n\) that is assumed to be an independent and identically distributed (i.i.d.) sample from a normal distribution with unknown mean \(\mu\) and unknown variance \(\sigma^2\) (thus standard deviation \(\sigma\)), how can we estimate \(\mu\) and \(\sigma^2\)? Said another way, how can we assume a normal probability model and fit that model to the data?

The maximum likelihood estimates (MLE) of \(\mu\) and \(\sigma^2\) are given by:

\[ \hat{\mu} = \frac{1}{n} \sum_{i=1}^{n} x_i \]

\[ \hat{\sigma}^2 = \frac{1}{n} \sum_{i=1}^{n} (x_i - \hat{\mu})^2 \]

Taking a square root gives the MLE of \(\sigma\):

\[ \hat{\sigma} = \sqrt{\frac{1}{n} \sum_{i=1}^{n} (x_i - \hat{\mu})^2} \]

Note that the MLE of \(\sigma^2\) is biased. The unbiased MLE of \(\sigma^2\) is given by:

\[ \hat{\sigma}^2 = \frac{1}{n-1} \sum_{i=1}^{n} (x_i - \hat{\mu})^2 \]

These are both valid estimates of \(\sigma^2\).

Both of these estimates can be referred to as the sample variance. However, be aware that without additional context, you cannot know which is being used! Specifically, numpy.var uses the biased MLE with \(\frac{1}{n}\), while pandas.DataFrame.var uses the unbiased estimator with \(\frac{1}{n - 1}\)!¹

np.random.seed(42)
data = np.random.normal(loc=0, scale=1, size=100)
var_numpy = np.var(data)
print(f"(NumPy, Biased) Variance:    {var_numpy}")
var_pandas = pd.Series(data).var()
print(f"(Pandas, Unbiased) Variance: {var_pandas}")

(NumPy, Biased) Variance:    0.8165221946938584
(Pandas, Unbiased) Variance: 0.82476989363016

Similarly, numpy.std and pandas.DataFrame.std will provide different results. They are both the square root of the respective variances.²

In general, when you hear “sample variance” or “sample standard deviation” it is likely that it is a reference to the version using \(\frac{1}{n - 1}\). However, in this note, we will be exclusively using maximum likelihood estimation, so we will need the \(\frac{1}{n}\) variants.

The maximum likelihood estimates are found by maximizing the likelihood, which is the product of the PDF at each data point, however with unknown parameter values.

\[ \mathcal{L}(\theta \mid x_1, x_2, \ldots, x_n) = \prod_{i=1}^{n} f(x_i \mid \theta) \]

In the case of the normal distribution, the likelihood is:

\[ \mathcal{L}(\mu, \sigma^2 \mid x_1, x_2, \ldots, x_n) = \prod_{i=1}^{n} f(x_i \mid \mu, \sigma^2) = \prod_{i=1}^{n} \frac{1}{\sqrt{2\pi\sigma^2}} \exp\left(-\frac{(x_i - \mu)^2}{2\sigma^2}\right) \]

Maximizing the likelihood is equivalent to maximizing the log-likelihood, which is given by:

\[ \begin{align} \ell(\mu, \sigma^2 \mid x_1, x_2, \ldots, x_n) &= \log \left (\mathcal{L}(\mu, \sigma^2 \mid x_1, x_2, \ldots, x_n)\right) \\ &= \sum_{i=1}^{n} \log f(x_i \mid \mu, \sigma^2) \\ &= \sum_{i=1}^{n} \left[-\frac{1}{2}\log(2\pi) - \frac{1}{2}\log(\sigma^2) - \frac{(x_i - \mu)^2}{2\sigma^2}\right] \end{align} \]

Note that the log of the product is the sum of the logs. Maximizing the log-likelihood is preferred as it is often easier to work with for optimization.

Here we can simplify the log-likelihood further.

\[ \ell(\mu, \sigma^2 \mid x_1, x_2, \ldots, x_n) = -\frac{n}{2}\log(2\pi) - \frac{n}{2}\log(\sigma^2) - \frac{1}{2\sigma^2}\sum_{i=1}^{n} (x_i - \mu)^2 \]

From here, we want to find the values of \(\mu\) and \(\sigma^2\) that maximize this log-likelihood. Importantly, while likelihoods are based on density functions, likelihoods assume that the data is known and the parameters are unknown. This is the opposite of the density function, which assumes that the parameters are known and the data is unknown.

The full derivation of the MLE of \(\mu\) and \(\sigma^2\) is beyond the scope of this note.

For a full derivation, see Maximum Likelihood Estimation Example 1-3 | STAT 415 @ PSU

Completing the optimization, we would find the MLE stated above.

\[ \hat{\mu} = \frac{1}{n} \sum_{i=1}^{n} x_i \]

\[ \hat{\sigma}^2 = \frac{1}{n} \sum_{i=1}^{n} (x_i - \hat{\mu})^2 \]

Show Code for Plot

# generate some data from a single normal distribution
np.random.seed(42)
data = np.random.normal(loc=4, scale=1.5, size=200)

# "fit" three normals to the data with different parameters
mu_estimates = [3.5, 4.0, 4.5]
sigma_estimates = [1.0, 1.5, 2.0]

# calculate log-likelihoods for each fitted normal
log_likelihoods = []
for mu, sigma in zip(mu_estimates, sigma_estimates):
    log_likelihood = np.sum(norm.logpdf(data, loc=mu, scale=sigma))
    log_likelihoods.append(log_likelihood)

# plot the data and fitted normals
fig, ax = plt.subplots(figsize=(10, 6))
sns.rugplot(data, ax=ax, color="tab:red", alpha=0.5, expand_margins=False)

x = np.linspace(data.min() - 1, data.max() + 1, 1000)
colors = ["tab:blue", "tab:orange", "tab:green"]
lines = ["-", "--", "-.", ":"]

for mu, sigma, color, line, log_likelihood in zip(
    mu_estimates, sigma_estimates, colors, lines, log_likelihoods
):
    ax.plot(
        x,
        norm.pdf(x, loc=mu, scale=sigma),
        color=color,
        label=f"Log-Likelihood={log_likelihood:.2f}",
        linestyle=line,
    )

ax.set_title("Rug Plot with Fitted Normals")
ax.set_xlabel("Data")
ax.set_ylabel("Density")
ax.legend(title="Fitted Normals")
ax.grid(color="lightgrey", linestyle="--")
plt.show()

Normal Distribution Maximum Likelihood Visualization | DSC 140A @ UCSD

Some Bayes Theorem

Given priors:

\(\pi_A = P(Y = A) = 0.20\)
\(\pi_B = P(Y = B) = 0.50\)
\(\pi_C = P(Y = C) = 0.30\)

And likelihoods:

\(X \mid Y = A \sim N(\mu = 2, \sigma = 1)\)
\(X \mid Y = B \sim N(\mu = 3, \sigma = 2)\)
\(X \mid Y = C \sim N(\mu = 4, \sigma = 1)\)

Calculate posteriors:

\(P(Y = A \mid X = 3.4)\)
\(P(Y = B \mid X = 3.4)\)
\(P(Y = C \mid X = 3.4)\)

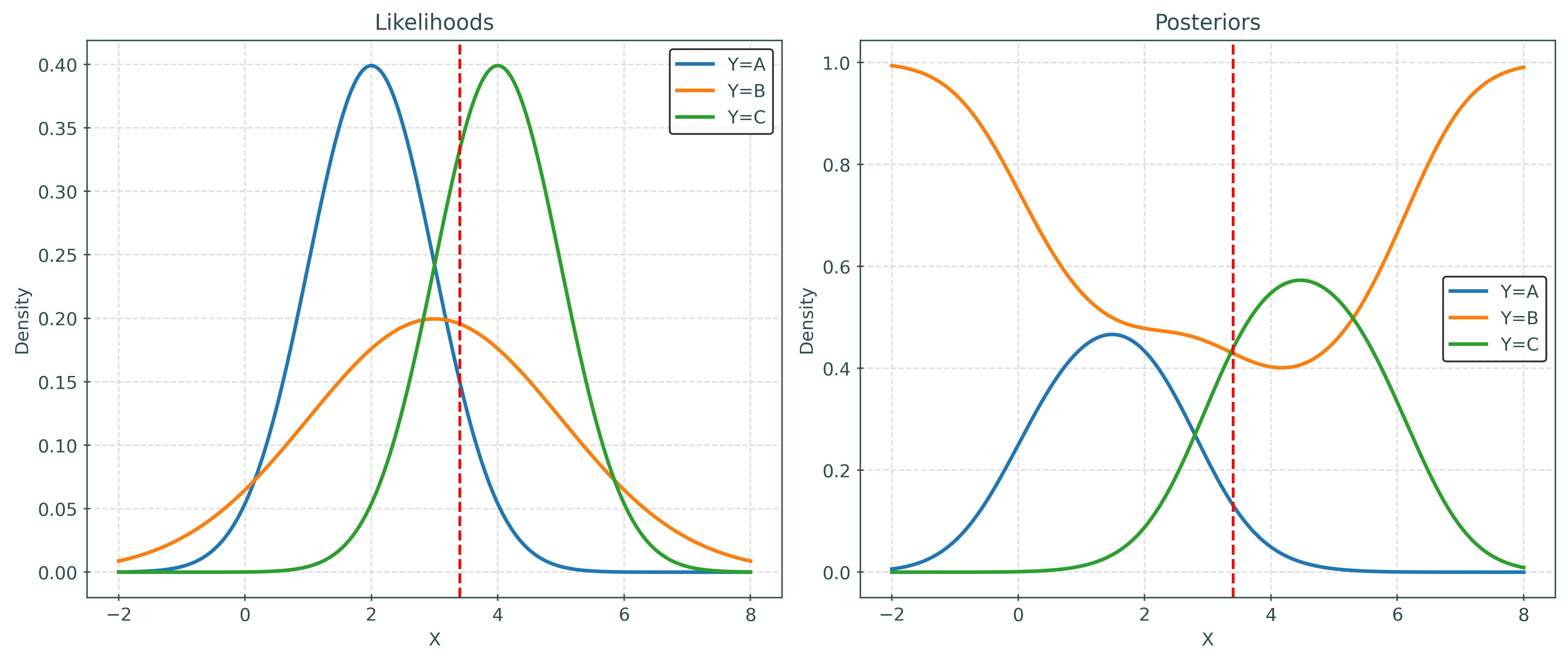

x = np.linspace(-2, 8, 1000)
classes = ["A", "B", "C"]
mu = [2, 3, 4]
sigma = [1, 2, 1]

fig, axs = plt.subplots(1, 2, figsize=(12, 5))

for i in range(3):
    y = norm.pdf(x, loc=mu[i], scale=sigma[i])
    axs[0].plot(x, y, label=f"Y={classes[i]}", linewidth=2)

axs[0].axvline(x=3.4, color="red", linestyle="--")
axs[0].set_xlabel("X")
axs[0].set_ylabel("Density")
axs[0].grid(color="lightgrey", linestyle="--")
axs[0].set_title("Likelihoods")
axs[0].legend()

priors = [0.20, 0.50, 0.30]

z = []
for i in range(len(x)):
    z.append(np.sum(priors * norm.pdf(x[i], loc=mu, scale=sigma)))

for i in range(3):
    y = priors[i] * norm.pdf(x, loc=mu[i], scale=sigma[i])
    axs[1].plot(x, y / z, label=f"Y={classes[i]}", linewidth=2)

axs[1].axvline(x=3.4, color="red", linestyle="--")
axs[1].set_xlabel("X")
axs[1].set_ylabel("Density")
axs[1].grid(color="lightgrey", linestyle="--")
axs[1].set_title("Posteriors")
axs[1].legend()

plt.show()

priors = [0.20, 0.50, 0.30]
likelihoods = norm.pdf(x=3.4, loc=[2, 3, 4], scale=[1, 2, 1])
priors * likelihoods / (np.sum(priors * likelihoods))

array([0.13152821, 0.42938969, 0.43908211])

\(P(Y = A \mid X = 3.7) = 0.13152821\)
\(P(Y = B \mid X = 3.7) = 0.42938969\)
\(P(Y = C \mid X = 3.7) = 0.43908211\)

\[ p_k(\pmb{x}) = P(Y = k \mid \pmb{X} = \pmb{x}) = \frac{\pi_k \cdot f_k(\pmb{x})}{\sum_{g = 1}^{G} \pi_g \cdot f_g(\pmb{x})} \]

Helper Functions

def make_plot(mu1, cov1, mu2, cov2, seed=42):

    # control random sampling
    np.random.seed(seed)

    # create two multivariate normal distributions
    dist1 = multivariate_normal(mu1, cov1)
    dist2 = multivariate_normal(mu2, cov2)

    # generate random samples from each distribution
    samples1 = dist1.rvs(size=100)
    samples2 = dist2.rvs(size=100)

    # change color maps for scatter plot
    cmap1 = plt.get_cmap("Blues")
    cmap2 = plt.get_cmap("Oranges")

    # arrange plot grid points
    x_min = np.min([np.min(samples1[:, 0]), np.min(samples2[:, 0])]) - 1
    x_max = np.max([np.max(samples1[:, 0]), np.max(samples2[:, 0])]) + 1
    y_min = np.min([np.min(samples1[:, 1]), np.min(samples2[:, 1])]) - 1
    y_max = np.max([np.max(samples1[:, 1]), np.max(samples2[:, 1])]) + 1
    x, y = np.mgrid[x_min:x_max:0.01, y_min:y_max:0.01]
    pos = np.empty(x.shape + (2,))
    pos[:, :, 0] = x
    pos[:, :, 1] = y

    # setup plots
    fig, ax = plt.subplots(1, 2, figsize=(10, 5))

    # plot true distributions
    ax[0].contourf(x, y, dist1.pdf(pos), cmap="Blues")
    ax[0].contour(x, y, dist1.pdf(pos), colors="k")
    ax[0].contourf(x, y, dist2.pdf(pos), cmap="Oranges", alpha=0.5)
    ax[0].contour(x, y, dist2.pdf(pos), colors="k")
    ax[0].grid(color="lightgrey", linestyle="--")
    ax[0].set_title("True Distribution")
    ax[0].set_xlabel(r"$x_1$")
    ax[0].set_ylabel(r"$x_2$")

    # plot sampled data
    ax[1].scatter(samples1[:, 0], samples1[:, 1], color=cmap1(0.5))
    ax[1].scatter(samples2[:, 0], samples2[:, 1], color=cmap2(0.5))
    ax[1].set_title("Sampled Data")
    ax[1].grid(color="lightgrey", linestyle="--")
    ax[0].set_xlim(x_min, x_max)
    ax[0].set_ylim(y_min, y_max)
    ax[1].set_xlim(x_min, x_max)
    ax[1].set_ylim(y_min, y_max)
    ax[1].set_xlabel(r"$x_1$")
    ax[1].set_ylabel(r"$x_2$")

    # shot plot
    plt.show()

# create mean (mu) and covariance (cov) arrays
def create_params(mu_1, mu_2, sigma_1, sigma_2, corr):
    # Create mean vector
    mu = np.array([mu_1, mu_2])
    # Calculate covariance matrix
    cov = np.array(
        [
            [sigma_1**2, corr * sigma_1 * sigma_2],
            [corr * sigma_1 * sigma_2, sigma_2**2],
        ]
    )
    # Return both
    return mu, cov

# print parameter information
def print_setup_parameter_info(mu1, cov1, mu2, cov2):
    print("Mean X when Y = Blue:", mu1)
    print("Covariance of X when Y = Blue:", "\n", cov1)
    print("Mean X when Y = Orange:", mu2)
    print("Covariance of X when Y = Orange:", "\n", cov2)

Linear Discriminant Analysis (LDA)

Linear Discriminant Analysis, LDA, assumes that the features are multivariate normal conditioned on the target classes. Importantly, LDA assumes the same covariance (shape) within each class.

\[ \pmb{X} \mid Y = k \sim N(\pmb{\mu}_k, \Sigma) \]

\[ \Sigma = \Sigma_1 = \Sigma_2 = \cdots = \Sigma_G \]

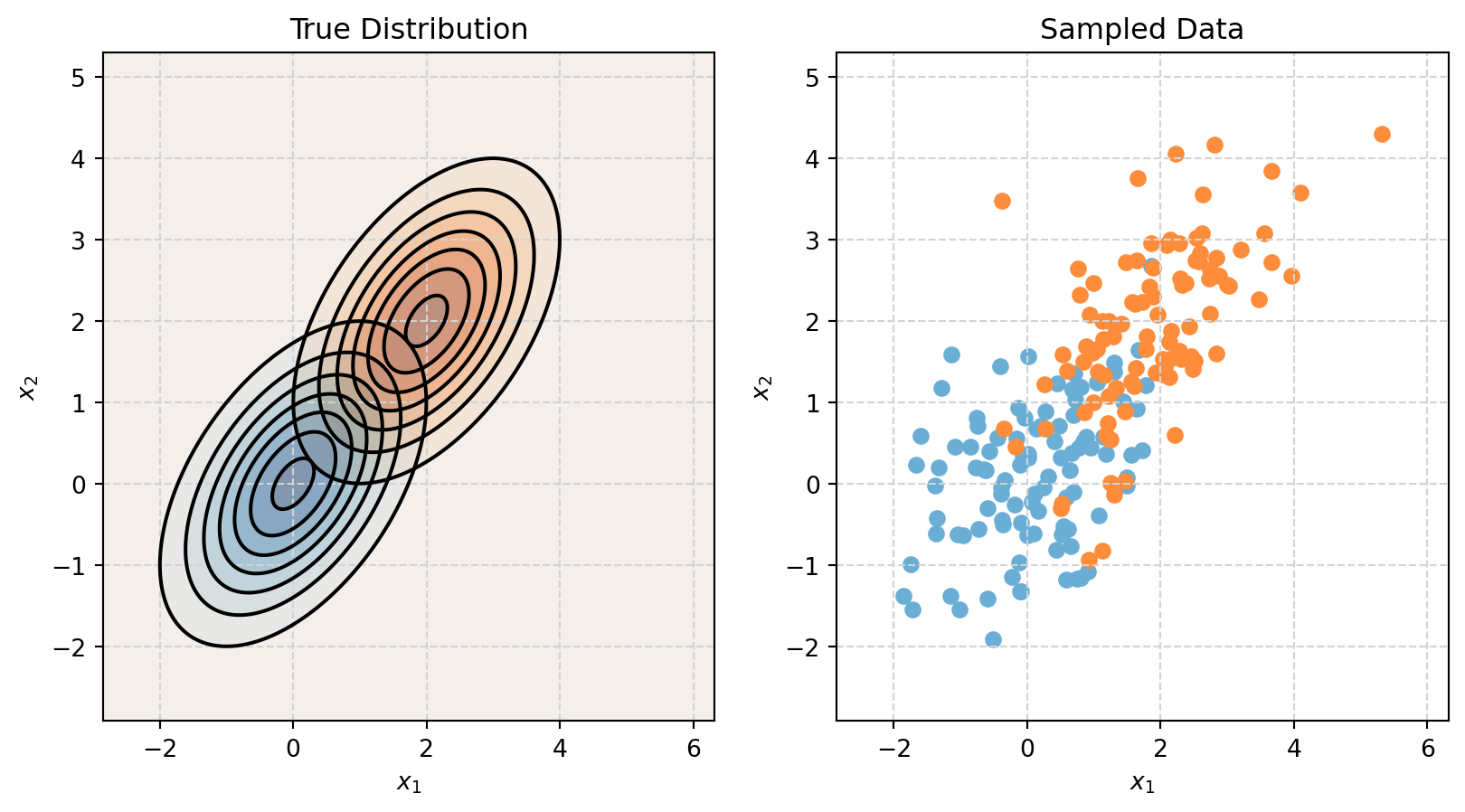

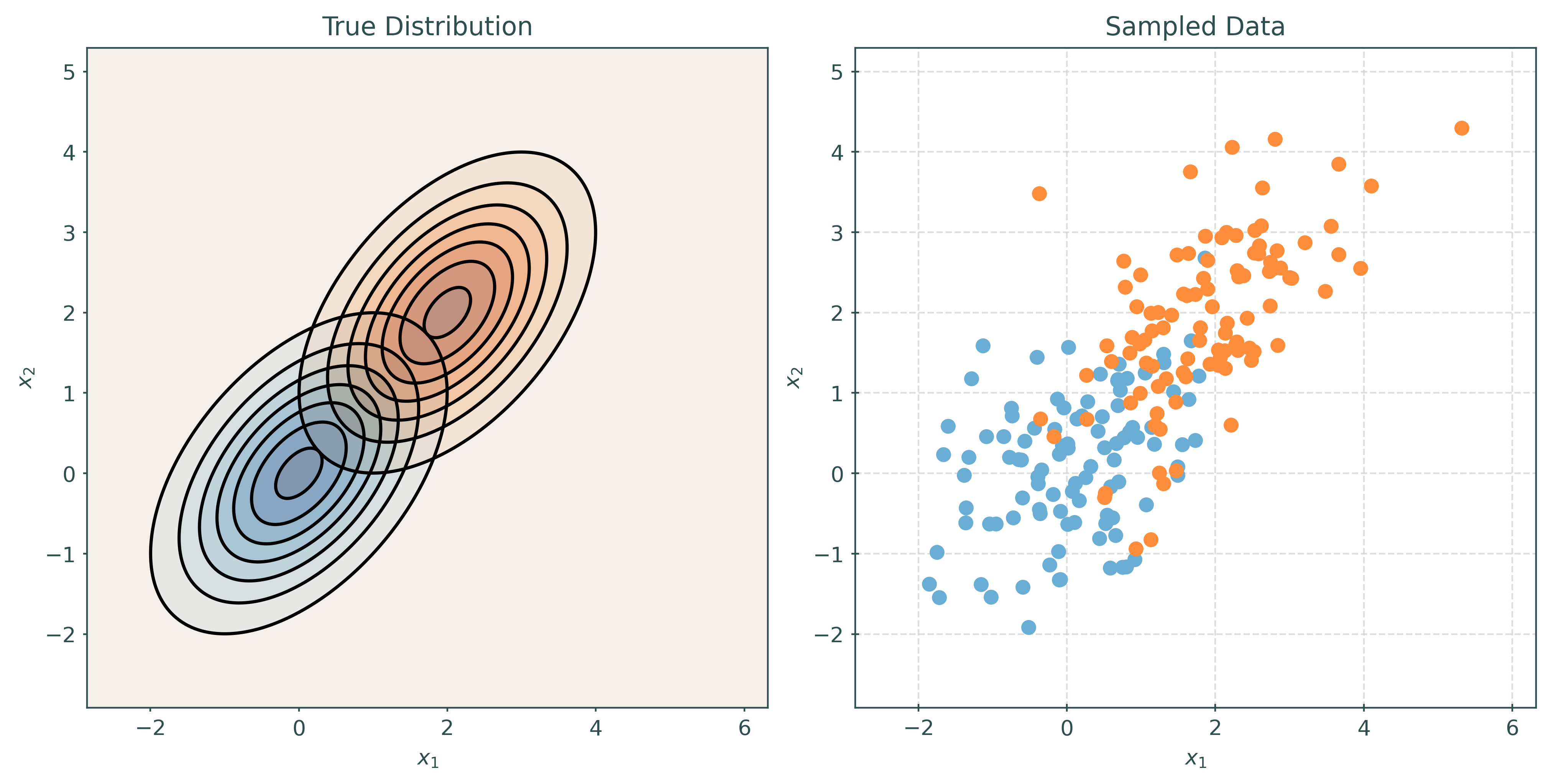

# make a two-class LDA setup
mu1, cov1 = create_params(0, 0, 1, 1, 0.5)
mu2, cov2 = create_params(2, 2, 1, 1, 0.5)
print_setup_parameter_info(mu1, cov1, mu2, cov2)

Mean X when Y = Blue: [0 0]
Covariance of X when Y = Blue:
 [[1.  0.5]
 [0.5 1. ]]
Mean X when Y = Orange: [2 2]
Covariance of X when Y = Orange:
 [[1.  0.5]
 [0.5 1. ]]

# plot (true) conditional distributions of X and sampled data
make_plot(mu1, cov1, mu2, cov2)

Quadratic Discriminant Analysis (QDA)

Quadratic Discriminant Analysis, QDA, also assumes that the features are multivariate normal conditioned on the target classes. However, unlike LDA, QDA makes fewer assumptions on the covariances (shapes). QDA allows the covariance to be completely different within each class.

\[ \pmb{X} \mid Y = k \sim N(\pmb{\mu}_k, \Sigma_k) \]

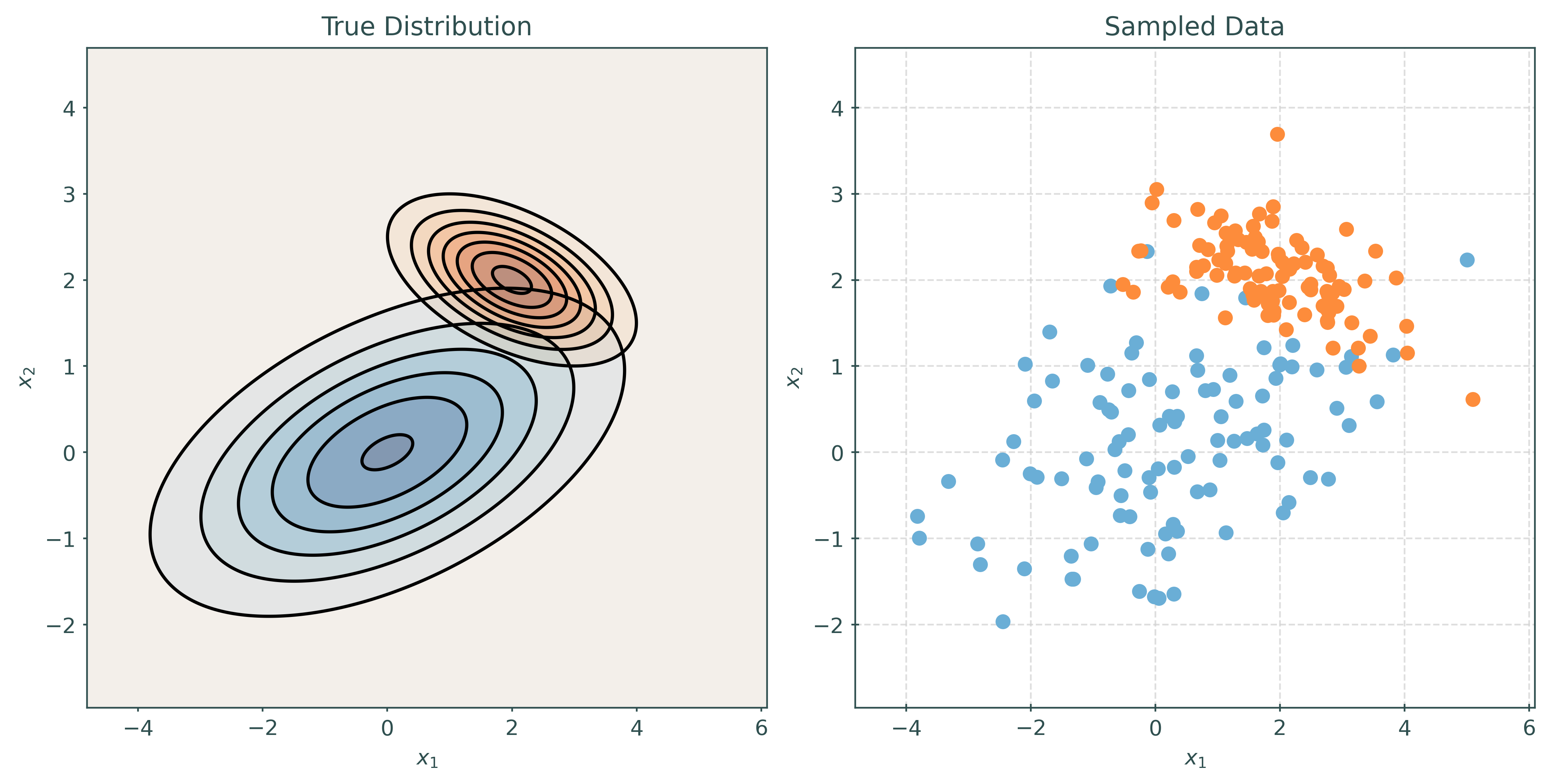

# make a two-class QDA setup
mu1, cov1 = create_params(0, 0, 2, 1, 0.5)
mu2, cov2 = create_params(2, 2, 1, 0.5, -0.5)
print_setup_parameter_info(mu1, cov1, mu2, cov2)

Mean X when Y = Blue: [0 0]
Covariance of X when Y = Blue:
 [[4. 1.]
 [1. 1.]]
Mean X when Y = Orange: [2 2]
Covariance of X when Y = Orange:
 [[ 1.   -0.25]
 [-0.25  0.25]]

# plot (true) conditional distributions of X and sampled data
make_plot(mu1, cov1, mu2, cov2)

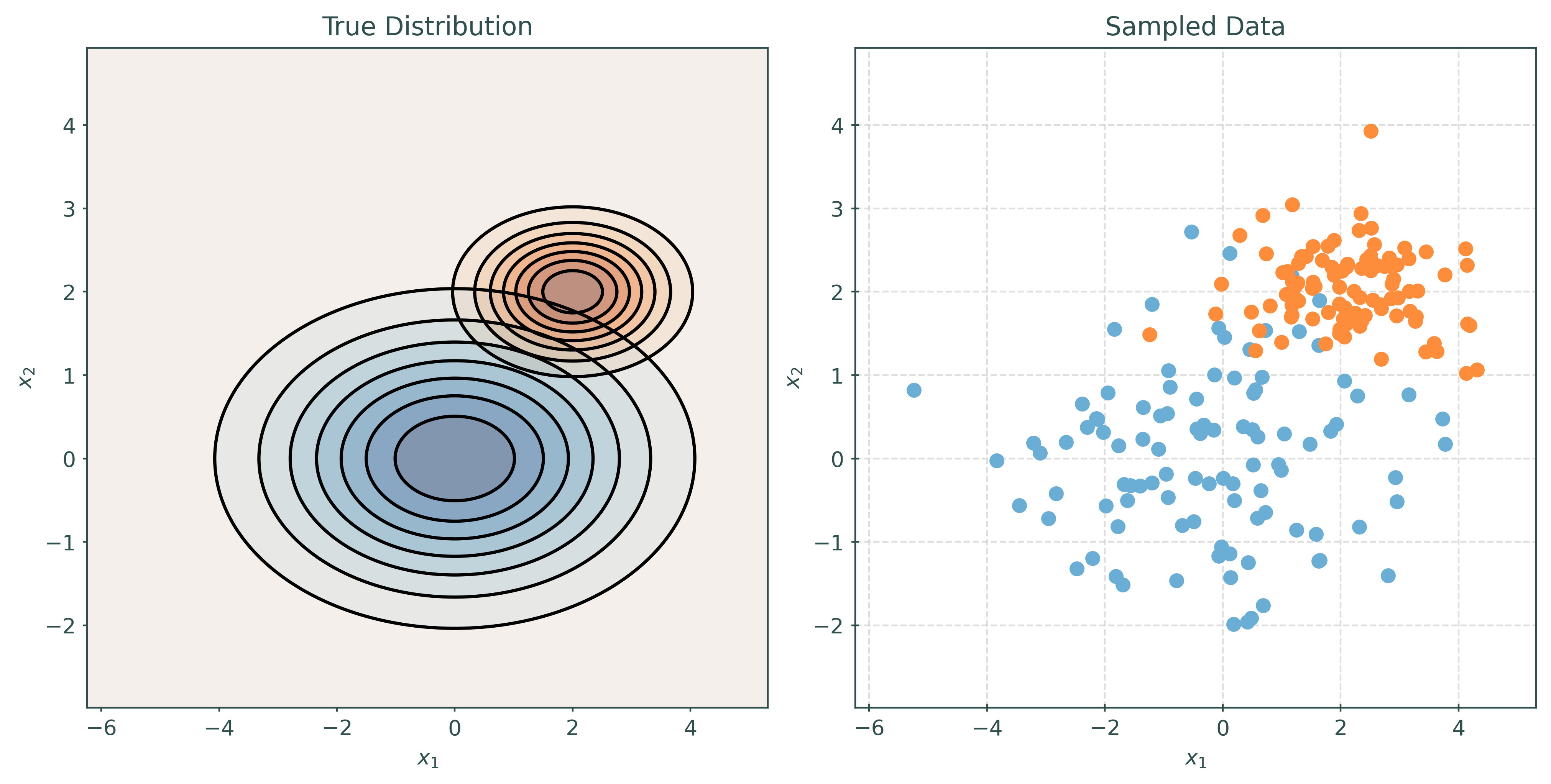

Naive Bayes (NB)

Naive Bayes comes in many forms. With only numeric features, it often assumes a multivariate normal conditioned on the target classes, but a very specific multivariate normal.

\[ {\pmb{X}} \mid Y = k \sim N(\pmb{\mu}_k, \Sigma_k) \]

Naive Bayes assumes that the features \(X_1, X_2, \ldots, X_p\) are independent given \(Y = k\). This is the “naive” part of naive Bayes. The Bayes part is nothing new. Since \(X_1, X_2, \ldots, X_p\) are assumed independent, each \(\Sigma_k\) is diagonal, that is, we assume no correlation between features. Independence implies zero correlation.

\[ \Sigma_k = \begin{bmatrix} \sigma_{1}^2 & 0 & \cdots & 0 \\ 0 & \ddots & \ddots & \vdots \\ \vdots & \ddots & \ddots & 0 \\ 0 & \cdots & 0 & \sigma_{p}^2 \\ \end{bmatrix} \]

This will allow us to write the (joint) likelihood as a product of univariate distributions. In this case, the product of univariate normal distributions instead of a (joint) multivariate distribution.

\[ f_k(\pmb{x}) = \prod_{j = 1}^{p} f_{kj}(x_j) \]

Here, \(f_{kj}(x_j)\) is the density for the \(j\)-th feature conditioned on the \(k\)-th class. Notice that there is a \(\sigma_{kj}\) for each feature for each class.

\[ f_{kj}(x_j) = \frac{1}{\sigma_{kj}\sqrt{2\pi}}\exp\left[-\frac{1}{2}\left(\frac{x_j - \mu_{kj}}{\sigma_{kj}}\right)^2\right] \]

When \(p = 1\), this version of naive Bayes is equivalent to QDA.

# make a two-class NB setup
mu1, cov1 = create_params(0, 0, 2, 1, 0)
mu2, cov2 = create_params(2, 2, 1, 0.5, 0)
print_setup_parameter_info(mu1, cov1, mu2, cov2)

Mean X when Y = Blue: [0 0]
Covariance of X when Y = Blue:
 [[4 0]
 [0 1]]
Mean X when Y = Orange: [2 2]
Covariance of X when Y = Orange:
 [[1.   0.  ]
 [0.   0.25]]

# plot (true) conditional distributions of X and sampled data
make_plot(mu1, cov1, mu2, cov2)
